Projection Mapper × Butterchurn

Shape live music visuals, images, and video to a projection surface with warp controls, polygon masks, and a clean projector window.

Version 1.0.1 · Built by djred · Runs entirely in the browser

Launch Projection Mapper

Project preview

Map live visuals to real surfaces.

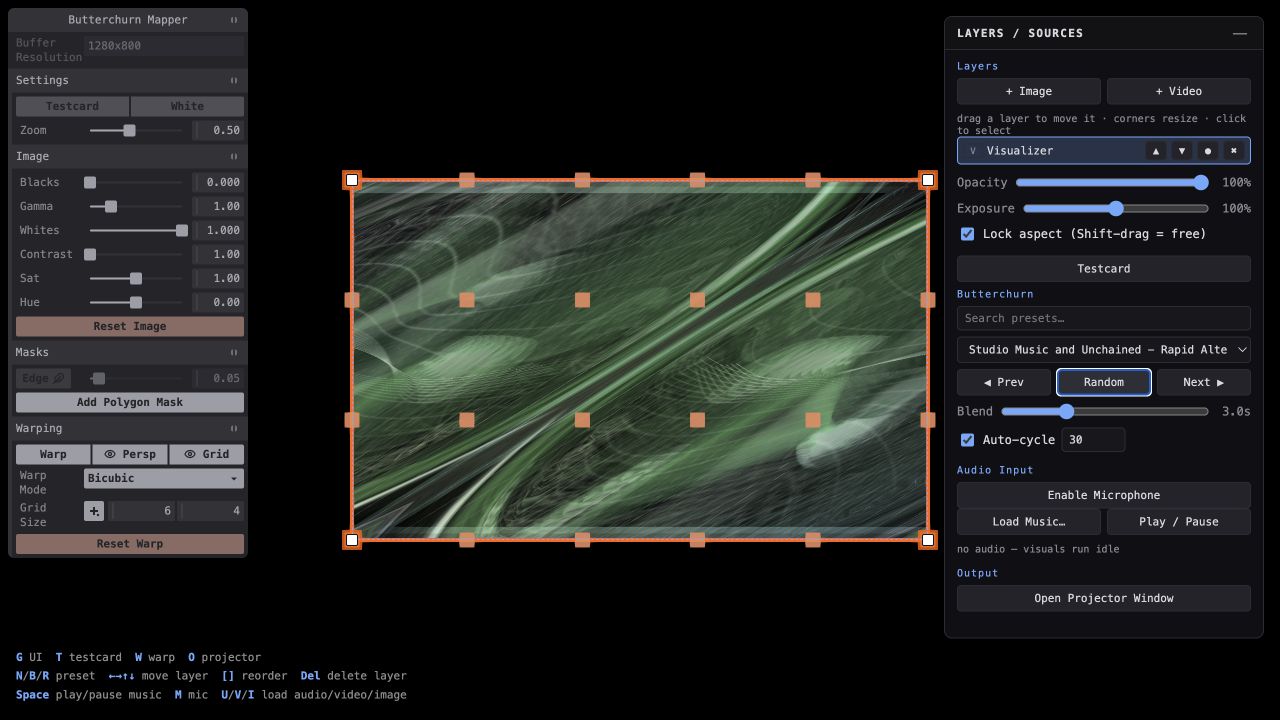

Projection Mapper running a live Butterchurn visualizer with warp and layer controls
The controller workspace with live visuals, layer controls, warping, and masks.

The project

One workspace for building and calibrating the show.

Projection Mapper combines a live Butterchurn music visualizer with tools for images, video, corner pinning, grid warping, and polygon masks.

Build the composition in the controller, then open a clean synchronized projector window for the final output. The workflow is made for stages, installations, storefronts, models, and workshop experiments.

Working features

Built around live control.

  1. Warp and maskFit unusual surfaces with corner, grid, and polygon controls.
  2. Layered mediaCombine live visuals with movable image and video layers.
  3. Projector outputKeep editing controls separate from the clean projected image.
  4. Browser basedRun the complete tool without installing a desktop application.
